Flow metering system simulator

The Fluids’Xperts simulators combine in a single instrument the various generators required for the initial or periodic checking of the flow computer to ensure compliance with standards, international recommendations and requirements of legal metrology.

More than signal simulation, simulator are able to calculate theoretical corrected volume for comparison with volume determine by under test flow computer. Error calculation is perform and control report is establish.

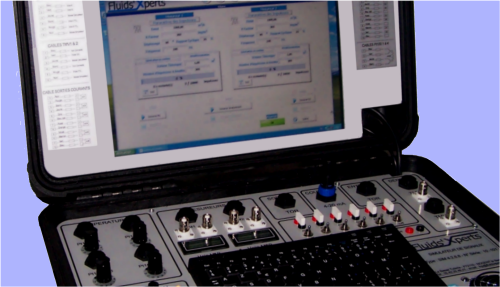

Simulator 4.2.6.8

This simulator is able to simulate two or four flow metering stream. It includes 2 (4) flow meter pulse generator, 6 current generator (0/4 – 20 mA) for pressure and temperature transmitter, 2 pulse generator for densitometer and 4 RTD. Calculation of volume and memorization of metering skid configuration are available.

Simulator 2.1.3.8

This simulator is able to simulate one or two flow metering stream. It includes 1 (2) flow meter pulse generator, 3 current generator (0/4 – 20 mA) for pressure and temperature transmitter, 1 pulse generator for densitometer and 4 RTD. Memorization of metering skid configuration are available.

Simulator 2.1.2.0

More simple and mobile this simulator must be used in association with a personal computer for its configuration. It allow to simulate one fiscal flow meter, one temperature transmitter (4-20 mA or RTD), one pressure transmitter and one densitometer.

SIM 4.2.6.8  Technical Description
SIM 4.2.6.8 Technical Description
SIM-4.2.6.8.-technical-description.pdf
Version: may 2017
1.2 MiB
557 Downloads
Details
SIM 2.1.3.8 Technical Description
SIM 2.1.3.8 Technical Description
SIM-2-1-3-8-flow-simualtor-.pdf
Version: may 2017
1.2 MiB
506 Downloads
Details
SIM  2.1.2.0 Technical Description
SIM 2.1.2.0 Technical Description
Descriptif-2.1.2.0-UK.pdf
Version: may 2017
650.0 KiB
424 Downloads
Details
